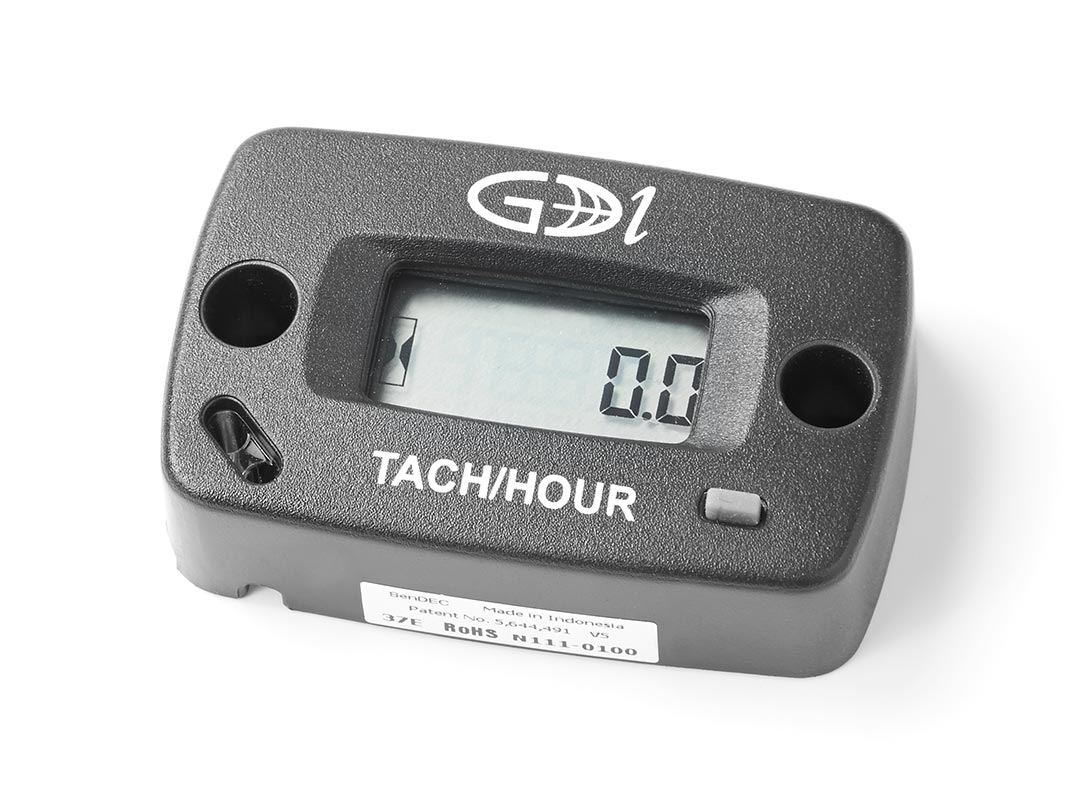

N110 Tach / Hourmeter

Product Features

OEM Options

• Pick and choose one or more functions
• Custom printing and logo
• Packaging: blister card, individual box, bulk in trays, polybagged or special kits

Hour Meter

• Records and displays to: 9.999,9 hours then rolls over to log whole hours to 99.999 hours
• Hour glass symbol flashes. On/Off to indicate counting time
• Resolution 0.1 hours
• Quartz accuracy: +/- 0.02% (over entire voltage & temperature range)
• Begins logging after 7 seconds delay
• Total run time Hour meter counts in tenths to 9.999.9, then whole hours up to 99.999 hours (non resettable)
• Resolution 0.1 hours
• 3 Automatic Service Alerts with Breakin interval and reset options
• Display of RPM when the unit is switched on
• Display of hours when the device is switched off
• Stock and customer messages

Tachometer

• Displays up to 15,999 RPM with a resolution of 1%.
• RPM are only displayed while the engine is running.
• Various firing patterns are available.
• The primary input for the tachometer is the inductive input

How it works

The Inductive Hour Meter for Gas Engines counts the ignition sparks by getting impulses from the spark plug.
The firing pattern can be 1:1 or 2:1.

Fields of Use

The Inductive Hour Meter can be used on any gas-powered equipment with 1 or 2 cylinders.

• Marine
• Motor Sport
• Home and Garden

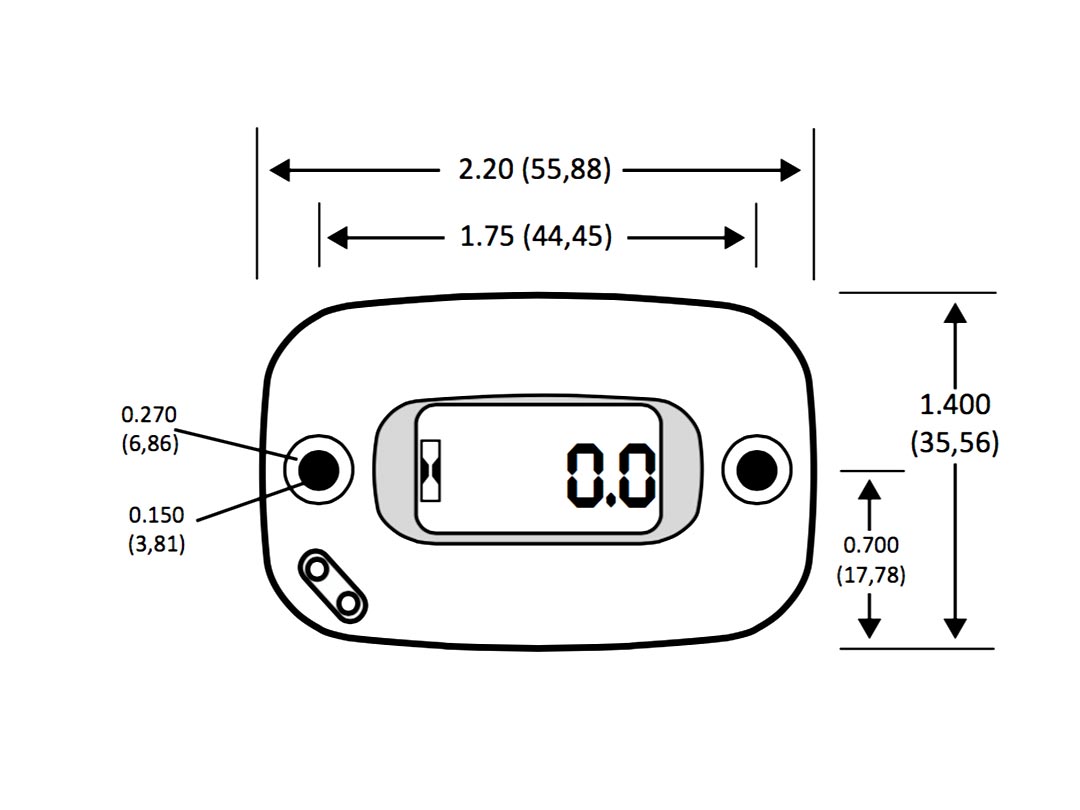

Technical Specifications

What makes the military quality?

• absolute dust-, fresh-, and saltwater resistant. Therefore it’s ideal for maritime areas, too. (Pressure-washer cleaning possible)
• Flash Alert service displays reminders for preventive maintenance. (LEARN MORE ABOUT THE FLASH ALERTS)
• Due to a self-contained battery it has a lifecycle of 12 years.
• Extrem shock proof up to at least 55G.
• High contrast LCD display is always lit and polarized to prevent discoloration from UV exposure

More details in Data Sheet (Downloads – see below).
