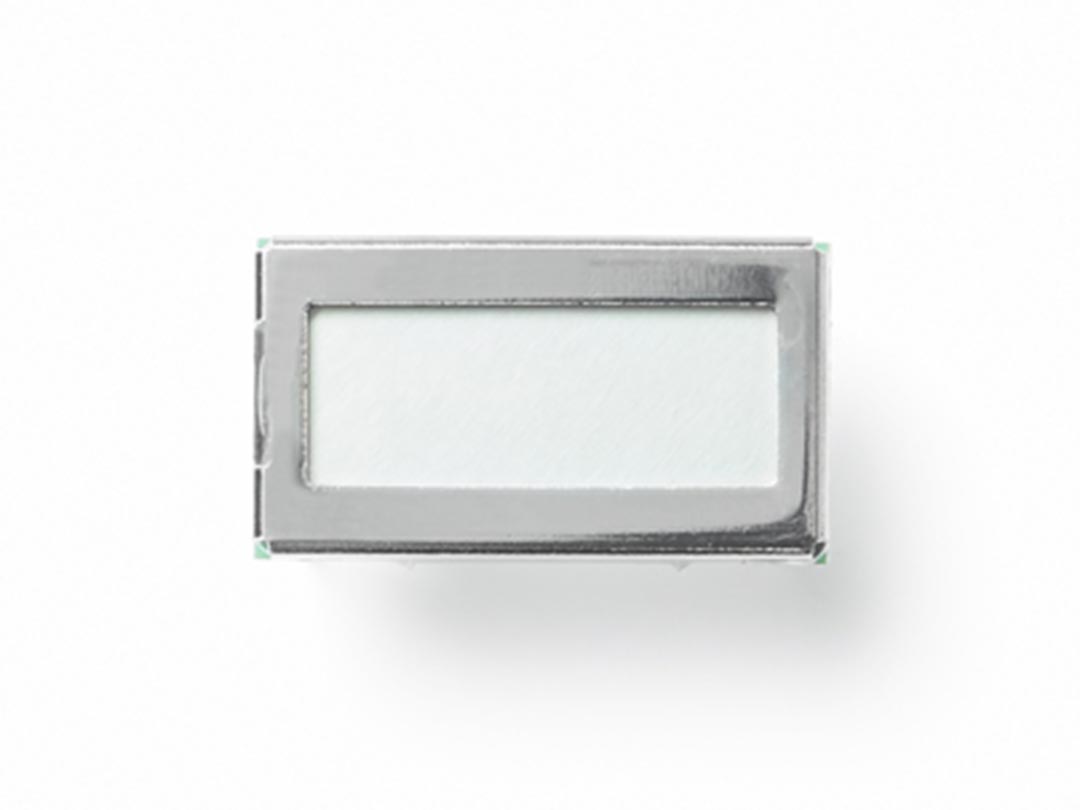

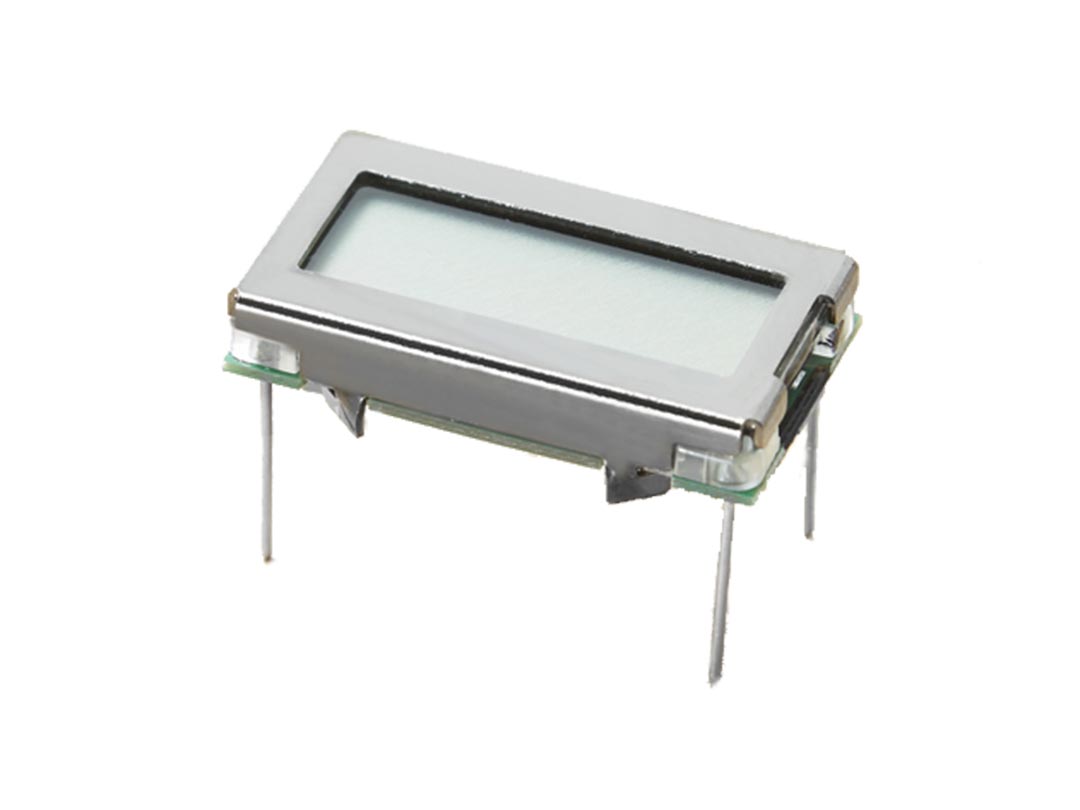

PCB Modules

Product Features

OEM Options

• Automatic on/off Service Alerts
• Reset clear Service Alerts
• Custom LCD, messages and Icons
• I/O Communations to host equipment

Features

Hour Meter

• Non resettable equipment run hours
• Total Timer shows 0.1 hour displayed resolution up to 99,999.9 hours, then 1 hour resolution up to 999,999 hours
• Hour glass symbol flashes on/off to indicate counting time
• Recorded resolution 1 second

Timers

• 2 independant timers, resettable (Timer 1, Timer 2)
• Timers show 0.1 hour displayed resolution up to 99,999.9 hours, then 1 hour resolution up to 999,999 hours.
• One optional alarm per timer

Service Alerts

• Up to three (3) Service alerts, automatic or resettable
• One time breakin interval option for each alarm (1 to 9999 hours)
• Normal interval: 1 to 999,999 hours
• Warning threshold (1-99 hours)
• Standard and Custom Alerts available on the LCD display

Counter

• Event counter, or power up/down cycle counter
• Up or down counting from 1 to 999,999 counts
• Optional count down preload, or count up to maximum value
• Resettable
• Max input rate 500Hz
• Alarm on LCD display available when count threshold is reached
• Output available when count threshold is reached

Tachometer

• Minimum RPM: 10
• Maximum RPM: 30 000
• Resolution: 1 RPM
• Firing patterns: 1 pulse = 1 RPM, 1 pulse = 2RPM, 2 pulses= 1RPM
  **other firing patterns available
• Configurable noise rejection
• Maximum RPM recall and clear option

Volt Meter

• Monitor and display equipment voltage
• Over/under voltage alarms available

Input Alarms

• Up to three prioritized alarms based on external digital inputs
• Standard and custom Alerts available on the LCD display

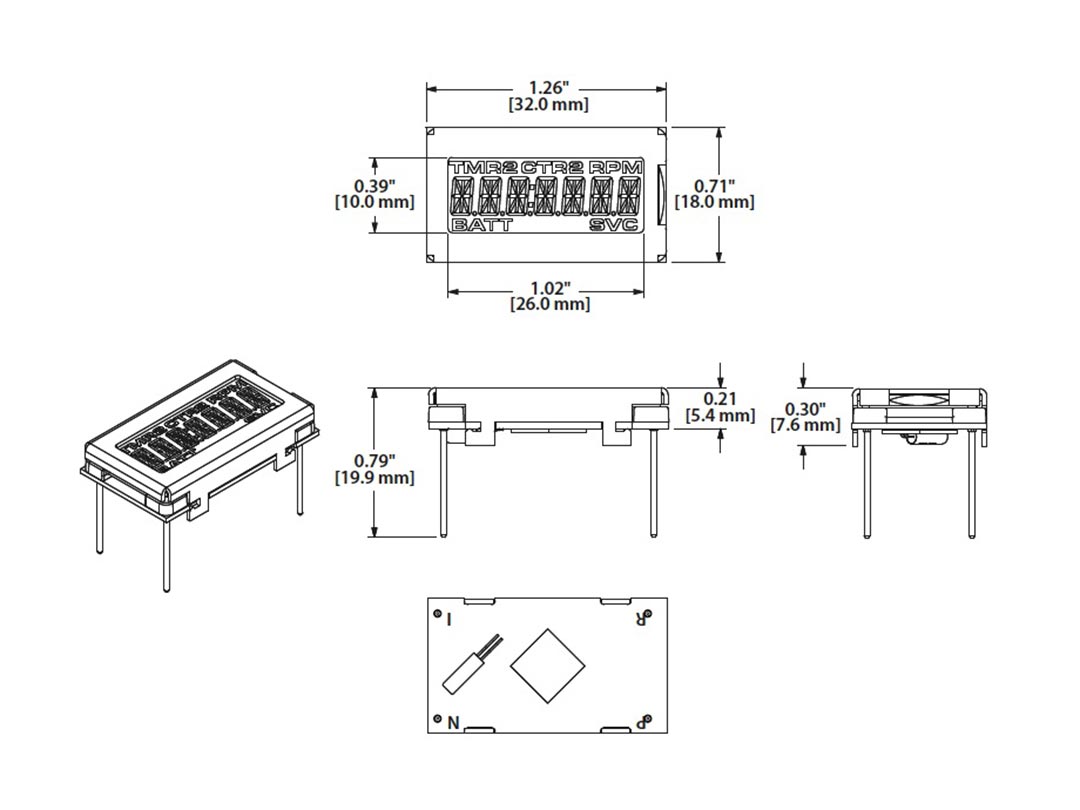

Technical Specifications

Environmental Specifications

• Operating temperature: -40°C to 70°C
• Humidity: SAE J1378 95% RH
• Weight 0.3 oz.
• Warranty: Two years for OEMs

Electrical Tests

• Immunity and Emissions: IEC 61326-1, IEC 61000-4-3
• ESD: IEC 61000-4-2

Environmental Tests

• Ultraviolet Test:
  UV Filter: 340nm,
  UV Sensor: Daylight Irradiance: 0.35W/m^2
  Total time: 2220 light hrs (2800 KJ/m^2 absorbed)
• Temperature Cycle Test:
  Range: -40°C to +70°C
  Ramp/Soak: 1 hr / 2 hr
  Total cycle / time: 500 Hours
